XGQ-30F/50F/100F/130F/150F Soft Mounted Automatic Washer Extractor

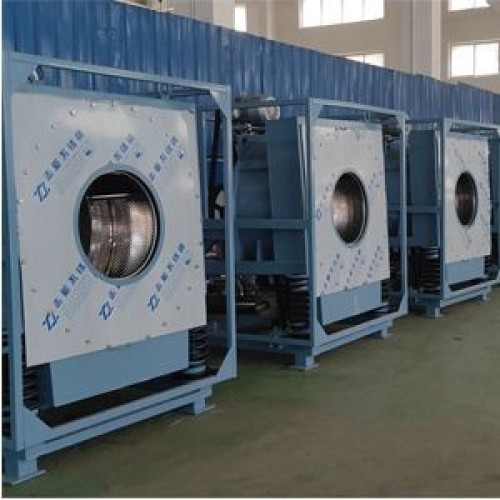

*Full suspension structure,which effectively isolate the vibration during washing;
*This machine is a fully enclosed rear drainage frame structure with no pollution;
*Basket and extermal plates are made of high grade stainless steel material for durability and anti-corrosion.
Totally 5 models out of 15 machines size from minimum 15kg dry load capacity to the maximum 150kg.
|
Model |
Unit |
XGQ-30F |
XGQ-50F |
XGQ-70F |
XGQ-100F |
XGQ-120F |
|
Capacity |
kg |
30 |
50 |
70 |
100 |
120 |
|
Basket size |
mm |
Φ905*500 |
Φ1065*628 |
Φ1200*600 |
Φ1230*800 |
Φ1300*900 |
|
Washing speed |
rpm |
40 |
38 |
38 |
38 |
38 |
|
Extracting speed |
rpm |
750 |
720 |
700 |
650 |
630 |
|
Motor power |
kw |
4 |
5.5 |
7.5 |
7.5 |
11 |
|
Inverter power |
kw |
5.5 |
7.5 |
11 |
11 |
15 |
|
Steam ratio |
kg/kg |
0.7 |
0.7 |
0.7 |
0.7 |
0.7 |
|
Water pipe |
Inch |
1.5 |
1.5 |
2 |
2 |
2 |
|
Steam pipe |
Inch |
1 |
1 |
1 |
1 |
1 |
|
Soap pipe |
Inch |
3/4 |
3/4 |
3/4 |
3/4 |
3/4 |
|
Steam pressure |
Mpa |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
|
Water pressure |
Mpa |
0.2-0.3 |
0.2-0.3 |
0.2-0.3 |
0.2-0.3 |
0.2-0.3 |
|
Dimension |
cm |
140*138*176 |
160*160*210 |
175*154*214 |
180*195*230 |
180*195*230 |
|
Weight |
kg |
1450 |
2200 |
2800 |
3200 |
4300 |
|
Note:The above specifications are subject to change without notice. |
||||||
Both steam heating and electric heating are available for custumers choice.
With a electric heaters to heat for 50kg washer,which will be more easy to install.
With steam pipe to choose(if choose electric heated,there is no this pipe),can fit on every custumers need.
As you see the picture above,if choose the steam heating option.There is a steam pipe to connect.
But if you choose the electric heating option.There are two electric heaters below to heat.
